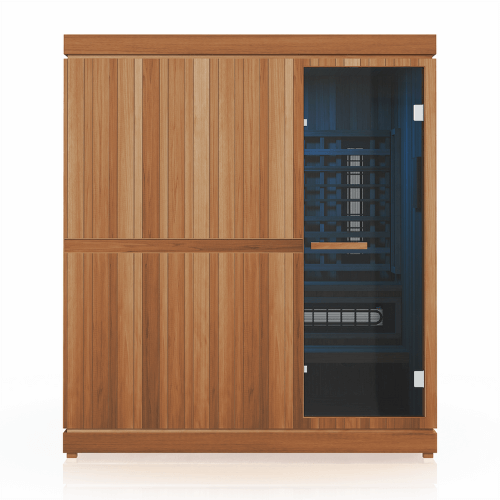

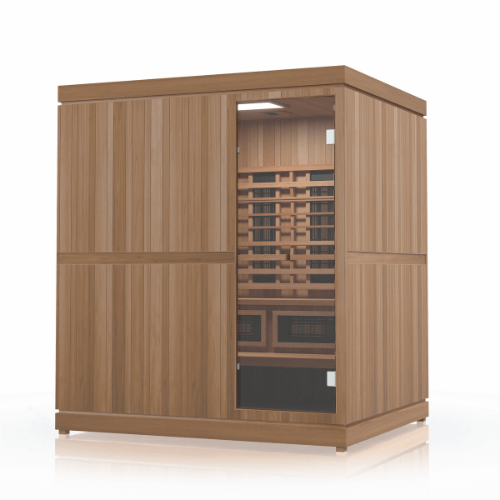

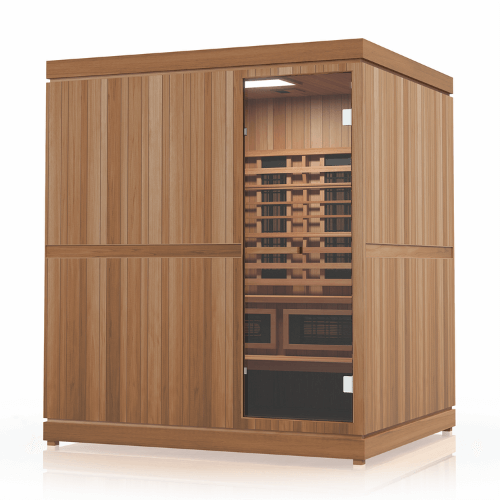

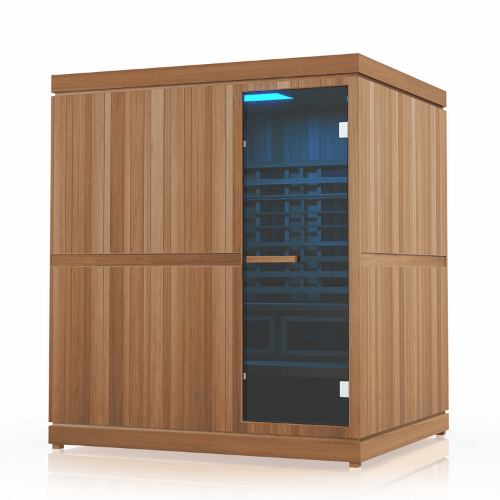

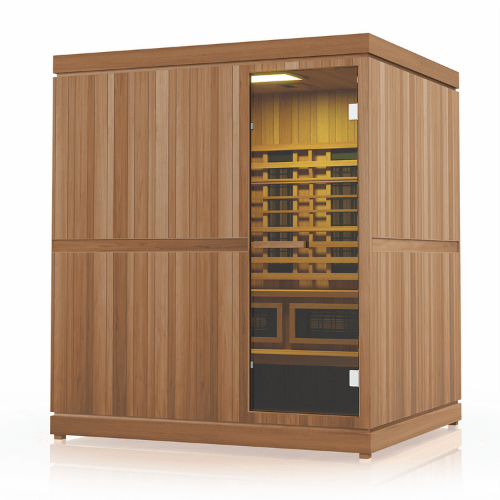

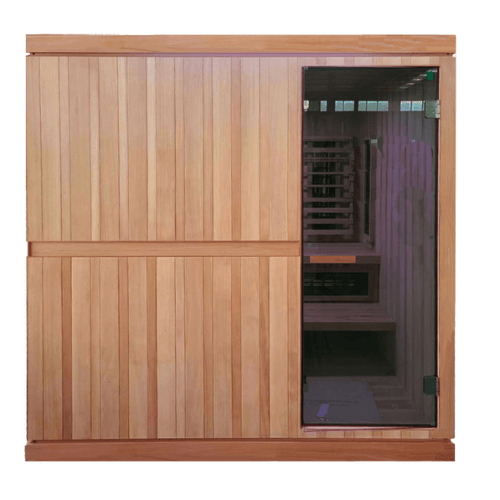

Finnmark Fd-5 Trinity XL Infra-Steam Sauna - Discover the Ultimate in Home Wellness
Looking for a spacious, all-in-one sauna solution that combines the therapeutic power of both infrared and steam?
The Finnmark FD-5 Trinity XL Infra-Steam Sauna is designed to accommodate up to 4 persons, making it perfect for families or wellness enthusiasts seeking a shared experience. This premium sauna combines full-spectrum infrared light, delivering deep tissue relief and detox benefits, with the soothing effects of steam therapy for a complete wellness upgrade. With ample space and advanced features, the FD-5 is crafted to bring a luxury spa experience into your home, supporting relaxation, recovery, and health in a single, state-of-the-art unit. Step inside and transform your wellness journey with the ultimate infrared-steam combo.
Key Features for Finnmark Fd-5 Trinity XL Sauna:

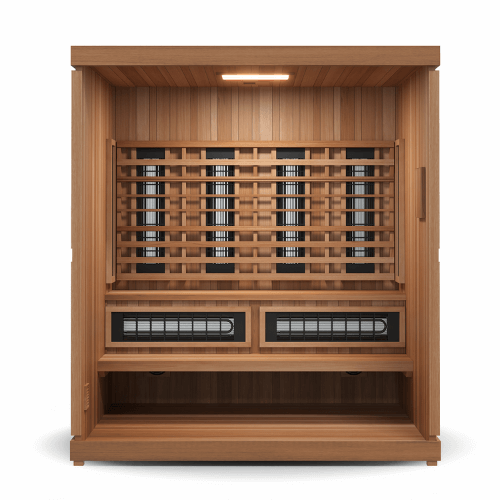

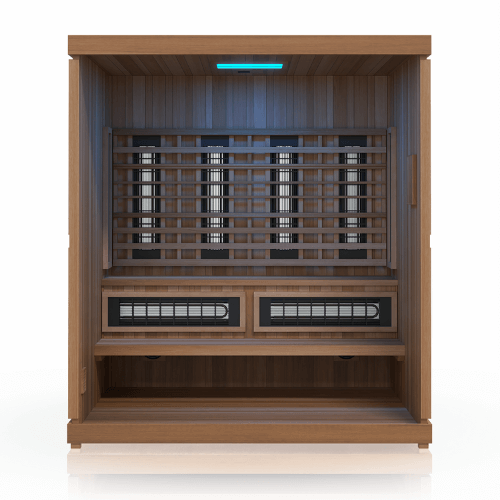

- Spectrum Plus™ UL Listed short wave infrared heaters for deep penetrating heat, up to 25x more than standard carbon panel heaters.

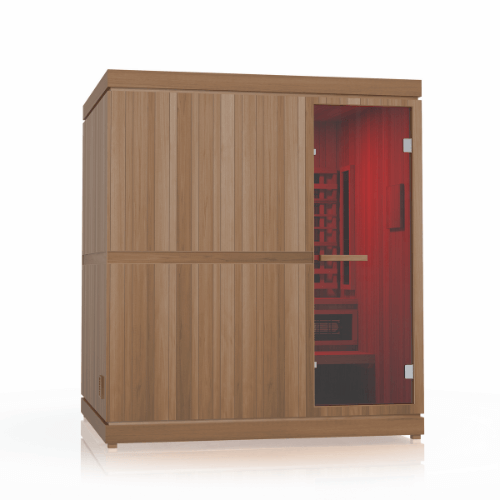

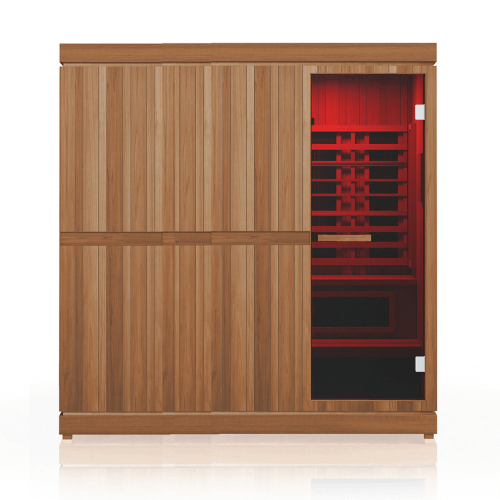

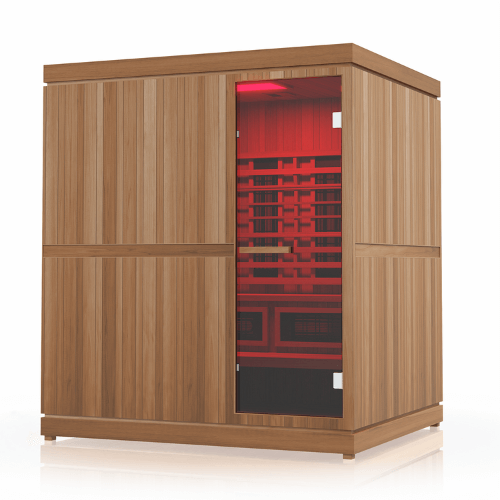

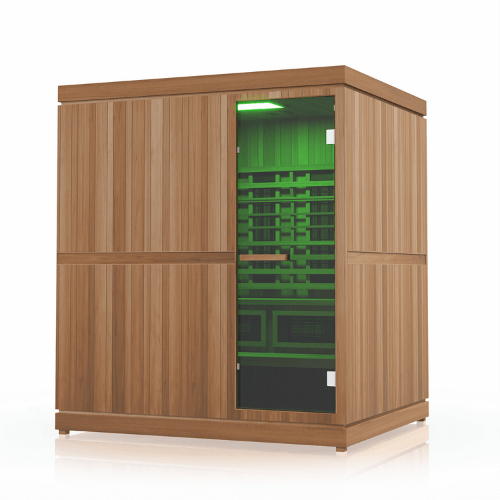

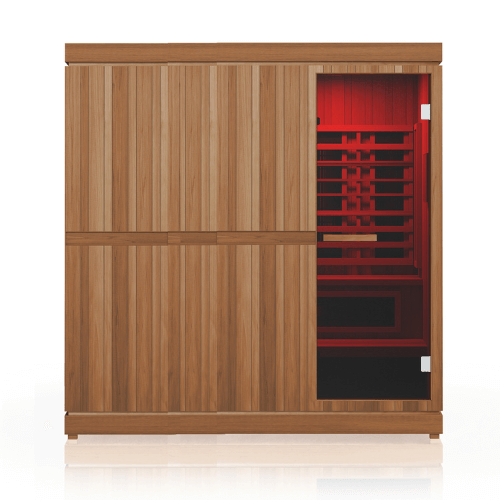

- Spectrum Red Light™ Therapy. 192 Diode medical grade LED panel capable of producing highly beneficial 650nm of red light therapy combined with chromotherapy for those days you need a little love.
- Antimicrobial Western Canadian cedar interior that protects against mold, bacteria and fungus.
- Thermal Plus™ Aspen exterior that will never rot, warp, decay or chip. Making FinnMark Designs full spectrum infrared saunas one of the healthiest and longest lasting saunas on the market.

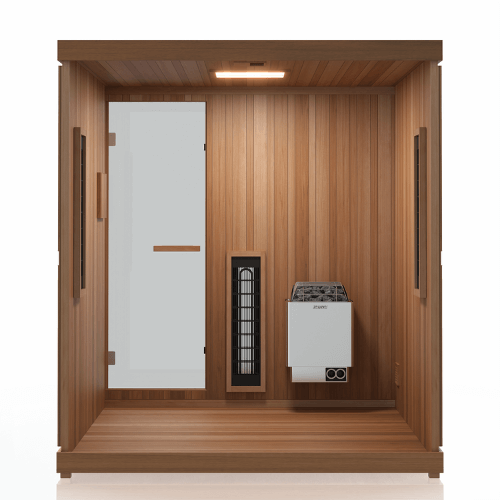

- 3-IN-ONE Combination. Compromise no more. Introducing the only combination sauna with true UL listed infrared heaters combined with a traditional heater that produces high heat steam. Get all the benefits of infrared combined with traditional rocks with steam all while soaking in the benefits of a medical grade Red light therapy LED panel.
- Built-in LCD touchscreen controller with Bluetooth audio.
- Audio with 6" HiFi marine grade speakers, 8mm tempered glass for the ultimate thermal retention.

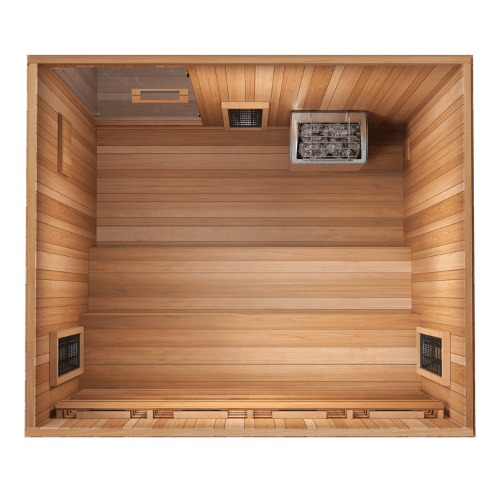

- Extra large two-tier bench system
- Low EMF sauna tested by a NASA award winning testing facility.
- High Emissivity infrared heaters

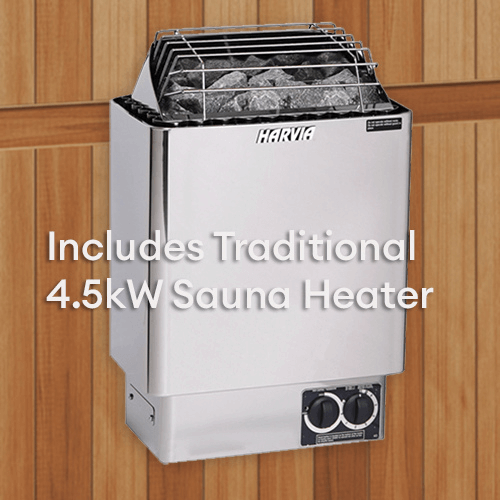

Harvia KIP Series B 4.5KW Sauna Heater
- Wall-mounted
- Stainless steel construction
- 4.5kW
- For sauna rooms from 100 to 210 cu. ft.
- Requires a minimum of 50lbs of stones (1 box-AC3000)
Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply). - Built-In controls
- Available in 240V/1PH operation or 208V/3Ph operation
- Industrial grade, serviceable heating elements
- Exceptionally large rock capacity
- UL listed
- Direct rock-to-heating element contact
- Designed, engineered, and made in Finland
- Dimensions: 16"W (406mm) x 11"D (279mm) x 24"H (609mm)
- 2-Year Warranty (Consumer Use)
Manufacturer's Note: Sauna heater stones are significant to the unit's safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.
Inclusions for Fd-5 Trinity XL Infra-Steam Sauna:
- Bottom Panel
- Top Panel
- Back Panel
- Front Panel
- Left Panel
- Right Panel
- Glass Door
- Bench Support
- Bench Top
- Heater Cable
- Floor Cable
- Screws
- Power Supply Unit
- Power Cable
- Interior Heater Connections with Wood Cover
- Door Handle (2 Screws)
- Infrared Sauna Heater Panels
- Harvia KIP Series B 4.5kW Sauna Heater
- 1 Box of the Harvia AC3000 0-10cm sauna stones (44 lbs)
Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply). - Medical Grade LED Red light therapy at 650nm plus color chromotherapy
- V2 LCD Controller 5" touchscreen controller with Bluetooth
- ETL Certification
- Limited Warranty
Trinity XL Infra-Steam Sauna Fd-5 Manuals:
-
Installation and Operation Manual
- Dimension Diagram
- Harvia KIP Heater Installation and Operation Manual
Specifications for Finnmark Trinity XL Infra-Steam Sauna:
- Model: FD-5
- External Materials: Thermo-Aspen
- Interior Materials: Western Canadian Cedar
- Volts: 240
- IR Watts: 2700
- Amperage: 15 | TBD
- Plug Type: NEMA 5-15P
- Maximum Temperature: IR 170° F | Traditional 190° F
- Interior Dimensions: 71"W x 57.5"D x 75.5"H
- Exterior Dimensions: 75"W x 64"D x 83"H
- Room Volume: 130 cu. ft.
- Door Dimensions: 23.625"W x 68.875"H
- Door Handle Dimensions: 1.5"W x 13.25"H
- Glass Thickness: 8mm W/Gasket
- Product Weight: 575 lbs
- Shipping Dimensions: 36"W x 80"D
-
Shipping Weight: 654 lbs W/48 lb Pallet
- Model: KIP45B
- Kilowatt Rating: 4.5kW
- Primary Fuel: Electric
- Minimum Adjusted Cubic Feet: 100
- Maximum Adjusted Cubic Feet: 210
- Voltage: 240V
- Phase: 1PH
- Amperage: 18.8 Amps
- Heater Weight: 40 lbs
- Shipping Weight with Sauna Stones: 84 lbs
- Width In Inches: 16" (406mm)
- Depth In Inches: 11" (279mm)
- Height In Inches: 24" (609mm)
